Data Catalog

Synchronize Data Tables and Views

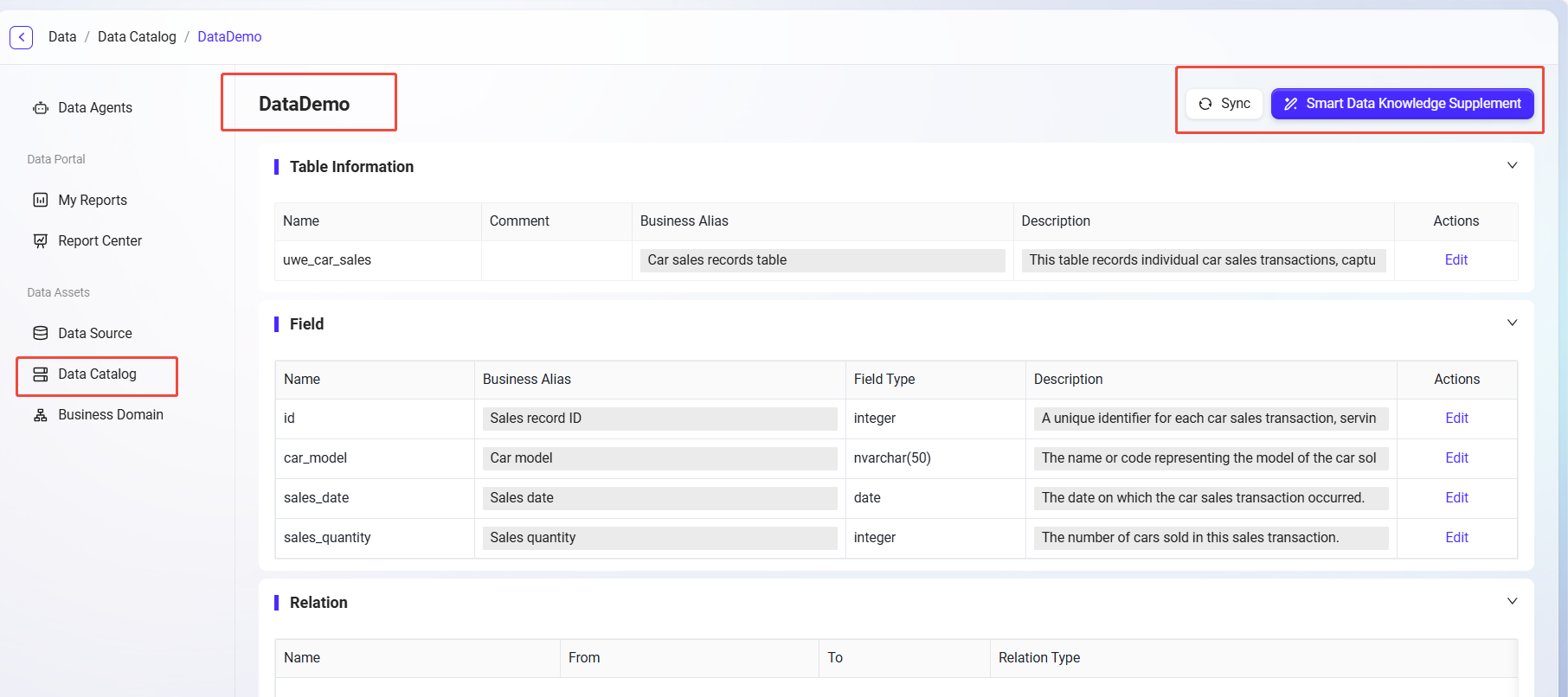

After connecting a data source, users can view and manage synchronized tables in the "Data Catalog" module.

• Only checked tables in the data source are displayed;

• Supports viewing each table’s table name, business description, field names, and field descriptions;

• Displays the relationships between the table and other tables, including related tables, related fields, and relationship types (such as primary-foreign keys);

• Supports one-click triggering of "Intelligent Data Knowledge Enrichment", where the system automatically generates business aliases and descriptions for tables and fields based on AI and Schema;

• Supports the "Data Table Synchronization" feature, which can reload updated table structures.

Notes on Data Catalog Synchronization

• Unsynchronized tables or views cannot be used

  • Only tables and views that have been synchronized in the data catalog can be referenced in the Data module of AI Central or used to build business domains.

  • If new data exists in the database but has not been synchronized in the data catalog, the system will not be able to recognize or use it.

• Database structure updates require re-synchronization

  • When the table structure or field information in the external database changes (for example, new fields are added, field types are adjusted, tables are renamed, etc.),

  • users need to perform the "Synchronize" operation in the data catalog to ensure that the data structure remains consistent with the source system.

  • Otherwise, the data in AI Central will still run based on the old version structure, which may cause subsequent data mapping errors or missing fields.

• Common causes of synchronization failure and troubleshooting

  • Data source connection failure: This may be caused by changes to the data source password, database service interruption, or network issues. Please retest the connection in "Data Source Management".

  • Insufficient table permissions: Some database accounts may only have read-only permissions or lack metadata access permissions. Please contact the database administrator to grant the corresponding permissions.

  • Special characters in field names or table names: In some databases, field names or table names may contain spaces, symbols, or reserved words. It is recommended to rename them in the database or exclude them before synchronization.

  • Schema mismatch: When the database structure changes frequently or multiple Schema are used, it is recommended to confirm that the Schema configuration is correct before synchronization.
