Fabric Integration Guide

Intended audience: Customer Azure administrators, platform administrators, implementation consultants Scope: Integration logic and configuration essentials for Microsoft Fabric as an Analytics data source Positioning: This document only covers the "data source integration" scenario, and does not involve vector database solutions, nor does it expand on MCP preconfiguration capabilities

Applicable Scope and Version Boundaries

What is supported:

• The platform connects to the customer's Microsoft Fabric SQL Endpoint / Warehouse as an Analytics data source: browse tables/views, sync metadata, preview data, and support analytical reporting.

• The default and recommended authentication method is SSO (Entra ID OAuth, based on Service Principal); traditional username/password authentication is also retained as a compatibility option.

• SSO supports two token management modes:

  • Zero-Trust (default): Only short-lived access tokens are stored; refresh tokens are not persisted. Once the token expires, authorization must be completed again.

  • Token-Refresh: The complete MSAL token cache (including refresh tokens) is persisted, supporting silent refresh and reducing the frequency of manual reauthorization.

What is not supported:

• This document does not cover Fabric as a vector storage solution for knowledge bases (if such requirements exist, refer to separate vector database documentation).

• It does not expand on Fabric-related MCP (Model Context Protocol) preconfiguration capabilities, which belong to another independent capability domain.

• Fabric data sources do not use port configuration (Fabric SQL Endpoint uses the HTTPS protocol layer and does not require an additional port).

• The platform is not responsible for creating Fabric workspaces (Workspace), Warehouse/Lakehouse resources, or assigning permissions; these must be completed by administrators.

Prerequisites Checklist

Key Azure-Side Configuration Points

1. Register the service principal: In Azure Portal → Entra ID → App registrations, create an application and record the Client ID and Tenant ID.

2. Create a Client Secret: In the application's "Certificates & secrets", create a secret and securely save the secret value.

3. Authorize on the Fabric side: In the Fabric admin center (or the access settings of the target Workspace), add the service principal as a Workspace member and grant the permissions required to access the target Warehouse/Lakehouse.

4. Confirm the SQL Endpoint address: In the Fabric Workspace, view the SQL Endpoint connection string of the Warehouse/Lakehouse, in the form of <workspace>.fabric.microsoft.com or <warehouse>-<id>.datawarehouse.fabric.microsoft.com.

5. Confirm whether the tenant allows service principals to access Fabric: In some tenants, service principal access to the Fabric API may be disabled by default. Administrators need to enable the relevant option such as "Service principals can use Fabric APIs" in Fabric tenant settings.

Key Platform-Side Entry Points

Entry and authorization process:

1. Fill in the connection information on the left side (Host, Database Name, Client ID, Tenant ID).

2. Fill in the authentication information on the right side (Client Secret, Auth Type, Mode).

3. Click "Authenticate" (the Authenticate button), and the system redirects to the Microsoft login page.

4. The customer's Azure administrator completes login and consent authorization, Microsoft completes the callback token exchange, and the data source status is updated to "Authorized".

5. After successful authorization, click "Test Connection" to verify availability.

Detailed Operation Guide

Go to the data source creation page

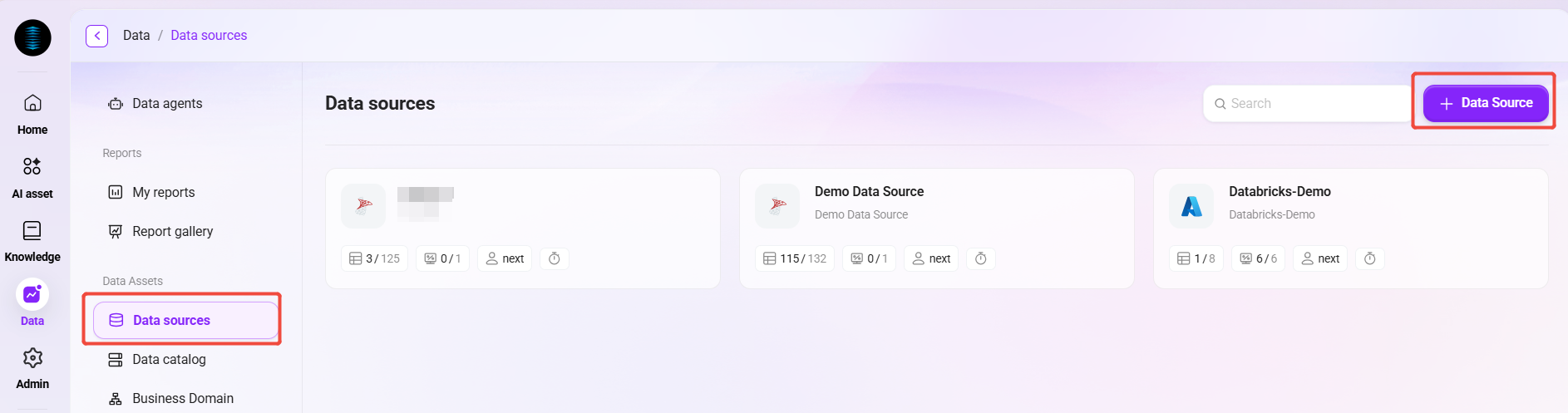

1. In the Data interface, find the data source entry

2. Click the "Create Data Source" or "New Data Source" button

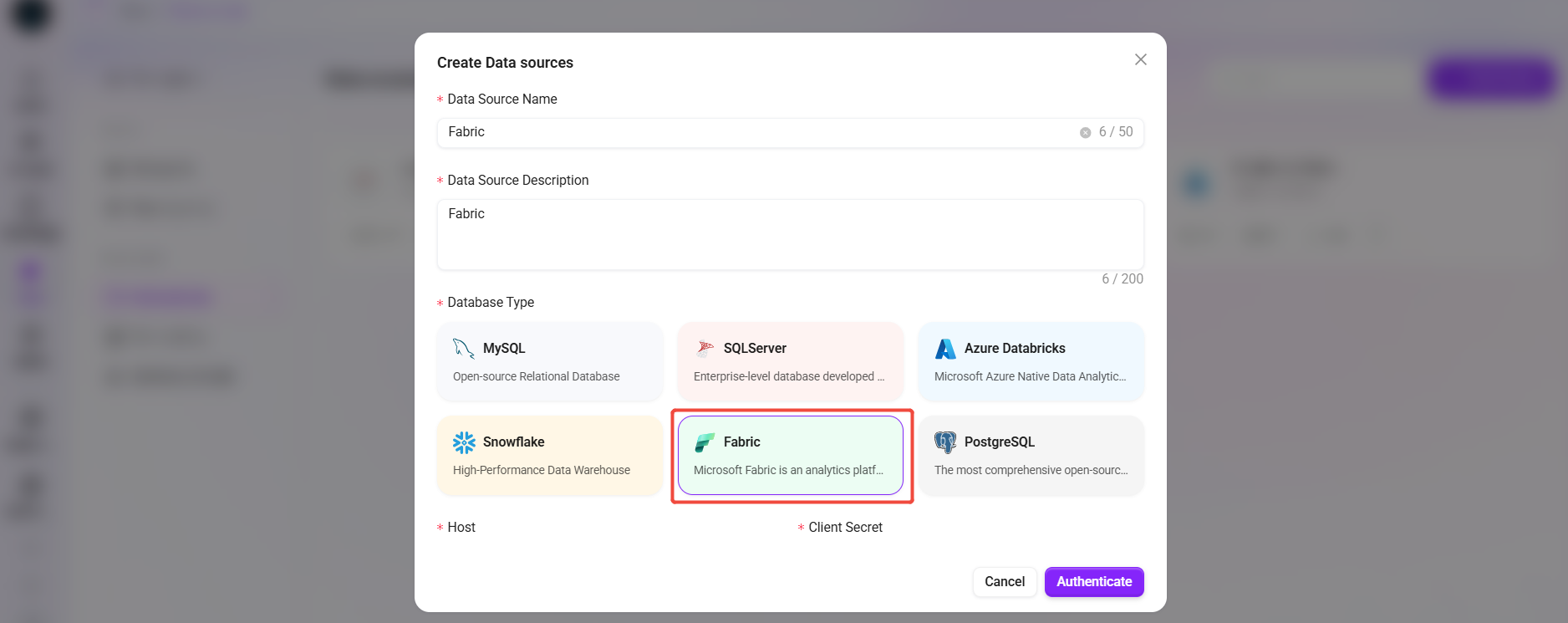

3. In the pop-up dialog for selecting the data source type, choose Fabric

Fill in the basic connection information

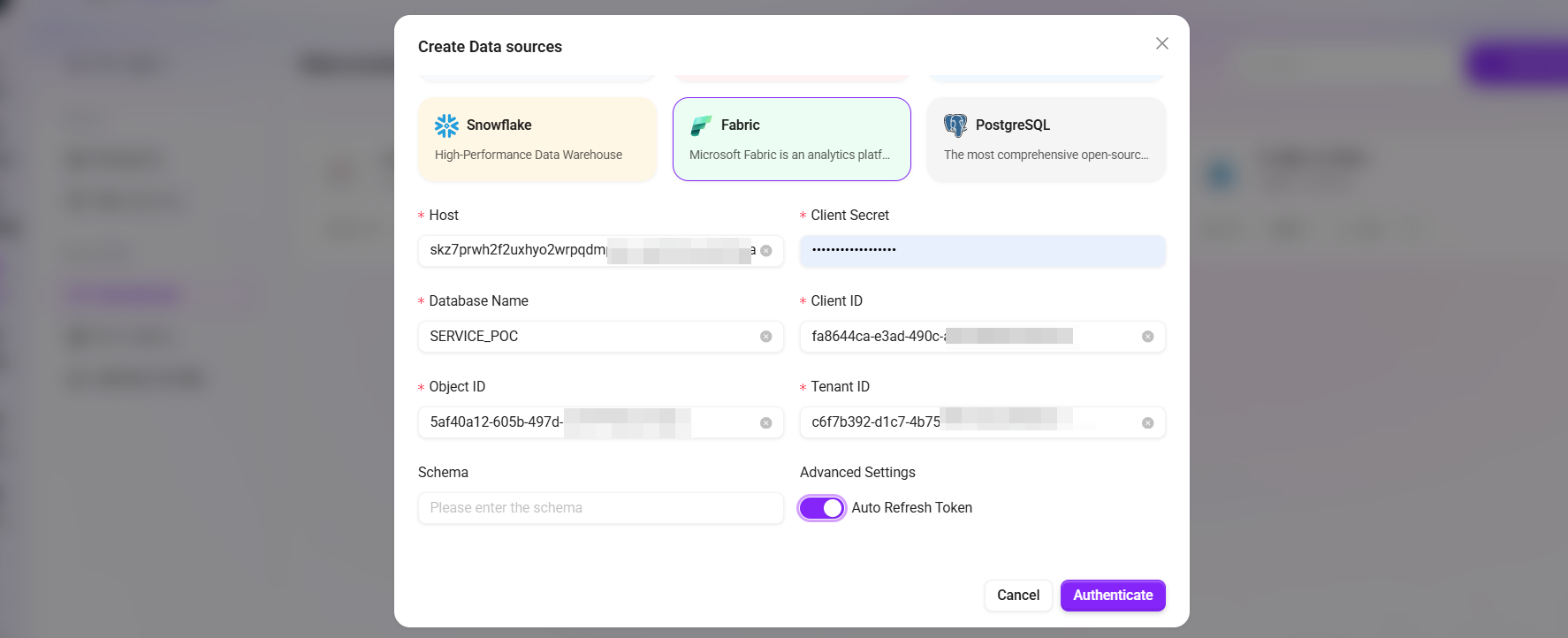

Fill in the following required fields in the left-side form:

Host*

• Enter the SQL Endpoint address of the Fabric service

• Example: <workspace>.fabric.microsoft.com or <warehouse>-<id>.datawarehouse.fabric.microsoft.com

Database Name*

• Enter the Warehouse name

• Ensure that the Warehouse already exists in the Fabric instance

Client ID*

• Enter the Client ID of the Azure AD application (service principal)

• This information can be found in App registrations in Azure Portal

Schema

• (Optional) Enter the database schema name

• If not specified, the default schema will be used

Fill in the authentication information

Fill in the following required fields in the right-side form:

Client Secret*

• Enter the client secret of the Azure AD application

• Note: This secret is time-limited, so make sure it has not expired

• Important: Keep this secret secure and do not disclose it

Tenant ID*

• Enter the Azure AD tenant ID (Directory ID)

• This can be found in the Azure Active Directory overview in Azure Portal

Auth Type*

• Select sso (recommended) for OAuth authentication based on a service principal

• Optionally select password as a legacy compatibility mode (not recommended)

Mode

• zero_trust (default): Does not persist refresh tokens; reauthorization is required after the access token expires

• token_refresh: Persists the complete MSAL cache, supports silent refresh, and reduces the frequency of reauthorization

Auto Refresh Token

• Enabling this option allows automatic refresh of access tokens

• Recommended to enable, to ensure that long-running queries do not fail due to token expiration

Verify the connection

1. Confirm that all required fields (marked with *) have been filled in correctly

2. Click the "Authenticate" button at the bottom of the page

3. The system will automatically redirect to the Microsoft account login page

4. Use an account with Fabric permissions to complete login and authorization

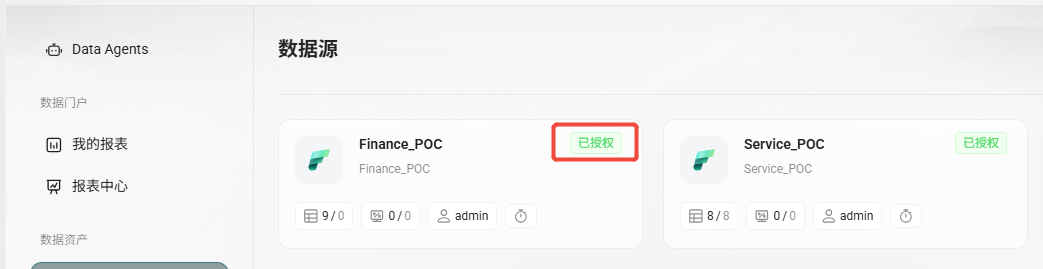

5. After successful login, the data source status is updated to "Authorized", and the Fabric data source is successfully connected

Testing and validation

After authorization is completed, verify connection availability by following these steps:

1. Click "Test Connection"; the system will discover and list visible tables and views

2. Perform "Sync Table Schema" on at least one key table to verify field information

3. Perform "Data Preview" on that table to confirm that data can be retrieved normally

4. If using Token-Refresh mode, it is recommended to initiate another query after some time to verify whether silent refresh is working
